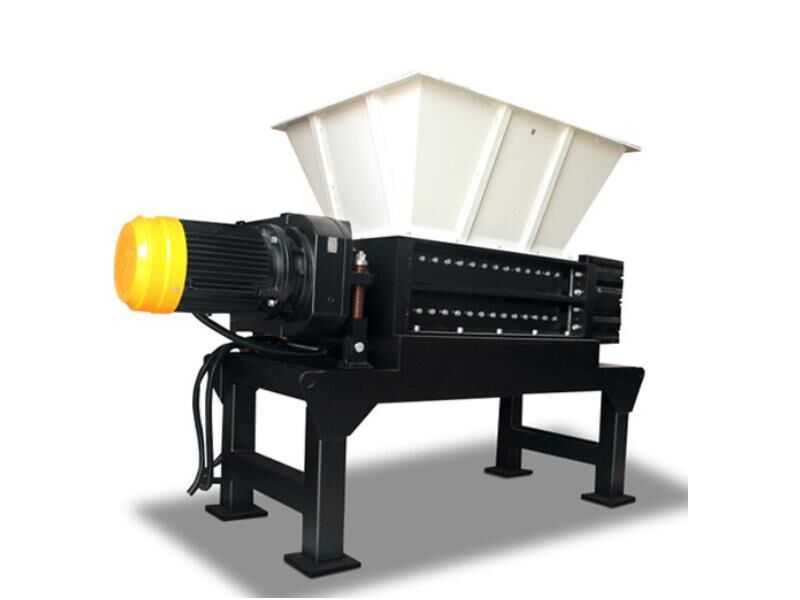

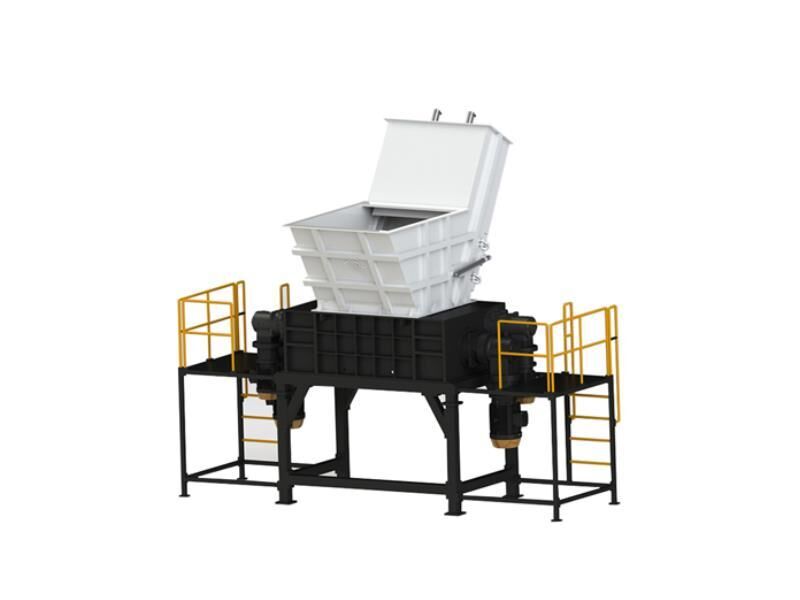

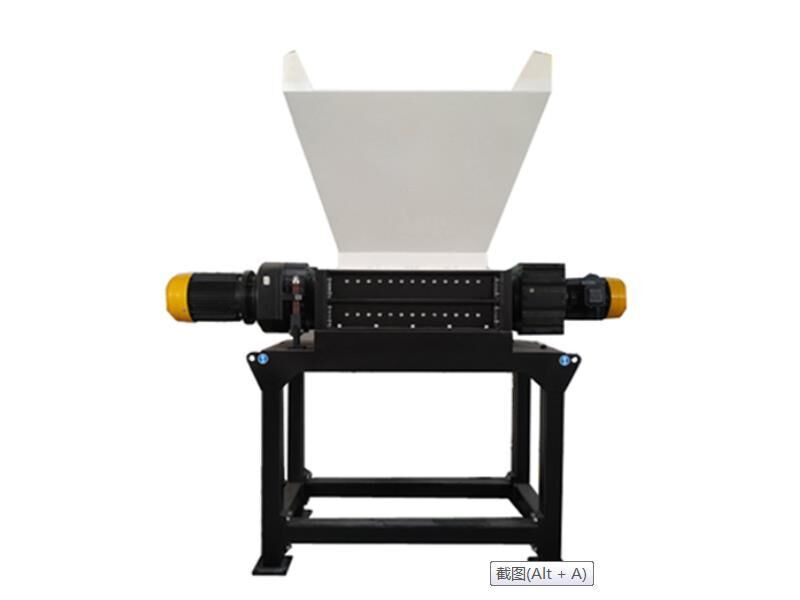

Double Shaft Shredder

The Double Shaft Shredder is a low speed and high torque industrial shredder with a minimum power of 1.5kw, thus saving energy. This dual shearing shredder does not have a screen unit. After the material is fed into the hopper, the material is handled using two counter rotating blades, then directly discharged. Although the output particle size is random, the two shaft shredder features a faster shredding speed and a higher throughput than other shredders.

The industrial shredder can be custom tailored to suit your material and requirements to ensure maximum economic and production benefits. The reducer and rotor utilize Germany standard DIN5480, and a Siemens PLC control offers automatic detection and overload protection. The two shaft shredder features a large transmission torque, reliable connections, low rotation speed, low noise and low maintenance cost.

Features:

Rotor

“V” arrangement cutter blades create a uniform shredding force. Blade material and structure: 42CrMoV superior alloy steel. A variety of materials and configurations are also available based on your application demands. The double-sided walls are made of a HARDOXTM wear-resistant steel plate, ensuring high abrasion resistance and excellent durability.

Drive train

A motor and hydraulic drive are provided to meet different applications. Hydraulic ram: common Double Shaft Shredders don’t come with a hydraulic ram. JZM can add a hydraulic processing ram according to special material handling requirements, allowing customers to improve their output.

Biaxial shredding machine by the motor, hard gear reducer, rotary shaft, imported moving knife, fixed knife, frame, frame, box, working platform and other main structure. The main function of the biaxial shredding machine is to reduce the material by cutting, tearing and extrusion large capacity materials and not easy to transport through the biaxial shredding machine large diameter drum material. Large biaxial shredding machine not only improves the production capacity and crushing efficiency, but also expands the application range. Large biaxial crusher products make full use of the advantages of various crushers based on the full use of impact, shear and mutual impact. Grinding and machining methods such as grinding.

Technical Features:

1. Our shredders can be employed as either a primary or secondary shredder and can be seen working anywhere from the waste management company to biofuel producers;
2. Dual shafted, slow-speed, high-torque waste shredder with hardened steel cutters;
3. The two cutting rotors powerfully grab the feed material, and no matter the feed material is large piece of hard plastic or heavy tires, this machine can easily shred them into small pieces;
4. Double shaft shredder is able to process a number of different materials;shredder is designed with a powerful engine, long working length and aggressive input,Internal feeding volume bigger than traditional and common single shaft shredder machine and allow you using forklift truck to feed.
5. Heavy structure: the frame and structure of our shredders are made of high-thickness sheets and tubular. Blades are manufactured from high quality steel, suitable for shredding tough materials and for extra long life;
6. Depending on requirement, these discs (blades) are available in a wide range of quantities, qualities and shapes with the new double-shaft shredder;
7. Any overloads caused by foreign material are sensed by the PLC controller and cause the shaft rotation to stop and reverse direction to clear the foreign matter, and then resume;
8. Cutters removal and replacement can be carried out safely and simply.
9. Our shredders Use a planetary reducer, not a traditional gearbox, and the planetary gearbox has the following advantages:High Efficiency,Greater Stability,Compact Size,Higher Torque Density,Cost Effective Precision,High Radial Loads.

We have a variety of machine models for you to select and we also provide customized service according to your crushing requirement.
