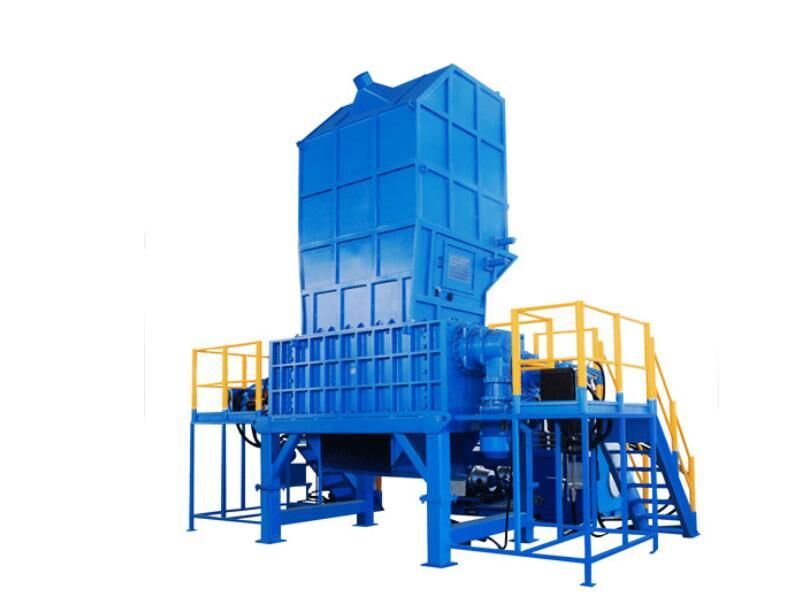

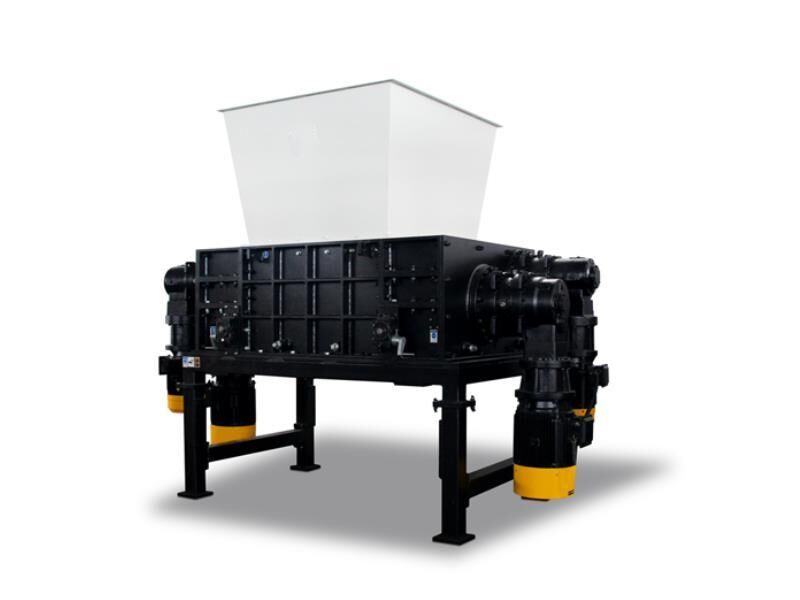

Four Shaft Shredder

The Four Shaft Shredder has advantages in standardization and modularization design, and high interchangeability for their components. Their blades are made of special alloy steel with high strength, strong antiwear, and reparability. The drive part takes advantage of 4 motors, and heavy planet gear boxes to make main shafts rotate at different speeds. The electric part takes advantage of the SIEMENS PLC program and touch screen control with a video monitor system and the automatic detecting overload protection function. They have low rotation speed, big torque, and low noise characters. So they have won customers’ trust and got popularity in the shredding process in the recycling industry

They are fit for shredding large and hard objects such as car body, solid industrial waste, medical waste, e-waste, plastic pail, plastic frame, plastic bottle, metal can, metal pail, intertexture bag, fridge, electric circuit board, paper box, wood and so on.

Applications:

• Bucket products: plastic bucket, metal drum, paint bucket, intermediate －bulk container    (IBC), and dustbin
• Wastes: household waste, medical waste, kitchen waste, industrial waste, park waste
• Plastic products: plastic bottles, plastic frames, plastic blocks, plastic can
• Metal products: aluminum profile, oil filter, car shell, pop-top can, metal can
• Paper: newspaper, card paper, corrugated paper, copy paper
• Electronic appliances: refrigerator, circuit board, laptop shell, TV set shell, CD disk
• Glass



Features:

Rotor

“V” spiral arrangement cutter blades bring uniform shredding forces. Auxiliary blades can automatically clean the main blades. The two-side abrasion-resistant sidewall liners are made from HARDOX wear-resistant steel plates.

Drive train

Drive train: hydraulic drive or motor drive is available to suit different applications.

Hydraulic ram

Hydraulic ram: ideal for processing large hollow products. Improves the throughput.

Screen unit

Screen unit: screens with a variety of structures and mesh hole sizes are selectable. A side pull screen can be provided for easy maintenance.

Sealing system

Sealing system: multiple sealing structures can effectively prevent material pollution. The superior bearing is durable and sturdy.

Electric system

Electric system: SIEMENS PLC control offers auto-detection and overload protection functions. The main electronic components are all from international famous brands.



Technical Parameters

Model	Motor power	Main blade thickness	Main blade rotation diameter	Cutting chamber dimensions(mm)	Overall dimensions(LxWxH)(mm)	Weight
FS4030	1.5KW	18.5mm	φ180mm	400x300mm	850x600x1650mm	1600kg
FS6650	7.5KW	18.5mm	φ230mm	660x500mm	1600x800x1940mm	1000kg
FS8040	2x11KW	18.5mm	φ245mm	800x400mm	1940x1200x2065mm	1600kg
FS8060	2x11KW			800x600mm	2130x1200x2065mm	1800kg
FS8080	2x11KW			800x800mm	2360x1200x2065mm	2000kg
FS9080	2x22KW	25mm	φ290mm	900x800mm	2690x1450x2450mm	3500kg
FS90100	2x22KW			900x1000mm	2890x1450x2450mm	4200kg
FS10080	2x30KW	40mm	φ320mm	1000x800mm	2620x1800x2500mm	5000kg
FS100100	2x30KW			1000x1000mm	2820x1800x2500mm	5500kg
FS100120	2x30KW			1000x1200mm	3020x1800x2500mm	6000kg
FS100140	2x30KW			1000x1400mm	3220x1800x2500mm	6500kg
FS130100	2×15+2x30KW	50mm	φ430mm	1300x1000mm	3550x2000x3100mm	11500kg
FS130120	2×15+2x30KW			1300x1200mm	3650x2000x3100mm	12500kg
FS130140	2×15+2x37KW			1300x1400mm	3850x2000x3100mm	13500kg
FS130180	2×15+2x37KW			1300x1800mm	4250x2000x3100mm	15500kg
FS160140	2×30+2x45KW	50mm	φ534mm	1600x1400mm	4160x2200x3630mm	17000kg
FS160160	2×30+2x45KW			1600x1600mm	4360x2200x3630mm	18000kg
FS160200	2×30+2x55KW			1600x2000mm	4560x2200x3630mm	19000kg
