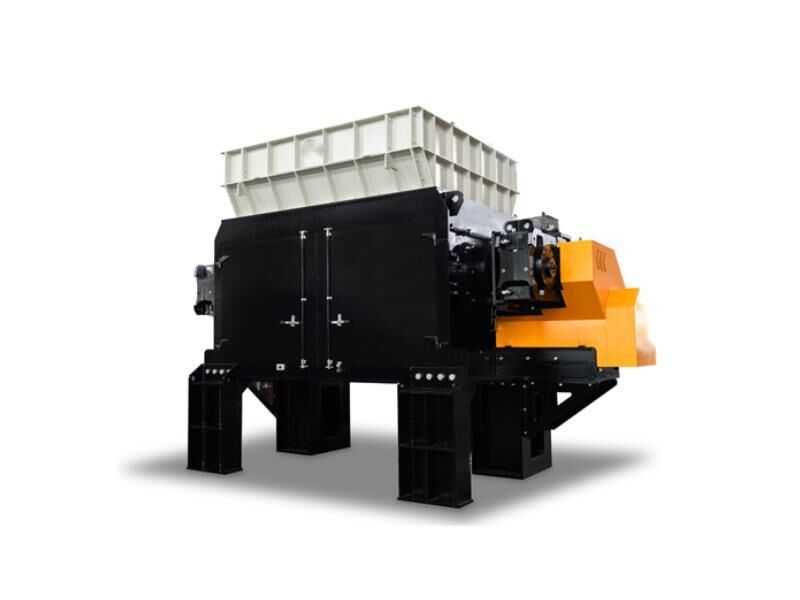

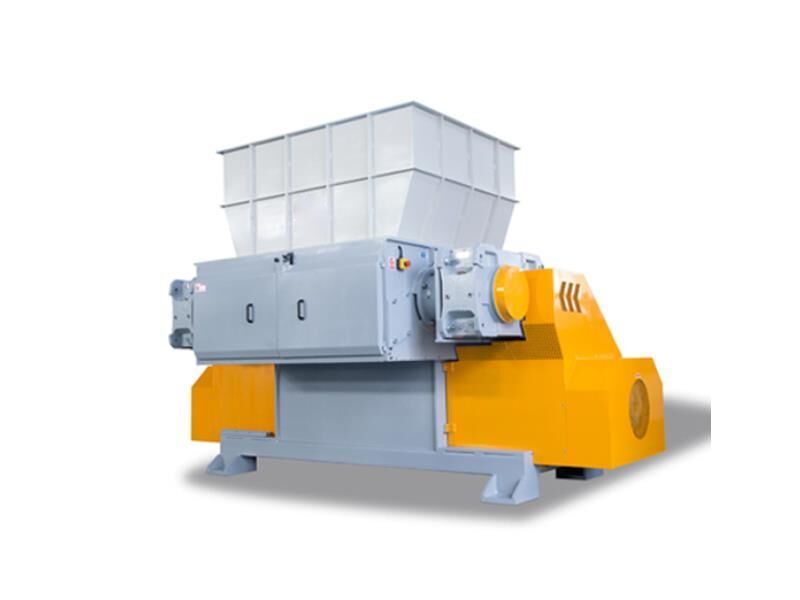

Single Shaft Shredder

Single shaft shredding machine is driven by a planetary gear reducer, blade is made of high strength alloy steel, has strong wear resistance and high strength characteristics, shaft differential operation, tear, extrusion, bite and other functions. Professional design for all kinds of household waste materials, suitable for crushing all kinds of household waste, such as waste clothing, waste shoes, waste quilts, waste household supplies, packaging bags, waste wood, waste plastic, food waste, medical waste, etc. Production can be provided according to the customer’s requirements and professional design. It has the advantages of uniform discharge, controllable size, large output and low noise.

Working principle:

Material through the feeding system into the shredding box, the box bearing the shredding blade, push the material box will be pushed to the blade near the material after the shredding blade tearing, extrusion, shearing and other comprehensive effects, shredding into small pieces of material, discharged from the screen hole.

Single shaft shredders reduce bulky materials into small, consistent particles. The material size is reduced using a pusher system and shingle shaft rotary blades. The particle size is determined by the screen mesh hole size, ranging from 40 to 100mm.

Specification:

The SR series single shaft shredder is a popular size reduction machine used for materials that contain minimal amounts of metal, such as plastic, paper, wood, waste wires and cables. The screen mesh size is determined by its material nature and subsequent processing requirements. The shredded particles can then be reused or further processed. An intelligent electric control provides a high degree of machine safety.

Product features:

1. Single shaft shredding machine is strong and durable. Suitable for recycling all kinds of large solid body materials, difficult materials, plastic containers and plastic buckets, and plastic gaskets. Shredding particles can be as small as 20mm according to different needs. And can provide all kinds of feeding hoppers according to customer needs. The equipment has low speed turning tool, low noise and more energy saving.
2. A single shaft shredding machine is composed of a moving cutter and a fixed cutter to complete the function of shredding materials. The cutter head is composed of a base shaft and a number of quadrilateral moving cutter blocks. Moving knife block has 4 cutting edges, replacement use. The cutter block is arranged in V-shaped rows along the base shaft and fixed on the base shaft with screws. It rotates with the base shaft to form the cutter head. There are two sets of static knives, fixed to the frame. The material is fed to the cutter head by the horizontal hydraulic cylinder. The speed is stable and adjustable, and the propulsion force is large and even. Suitable for recycling all kinds of large solid body materials, irregular and difficult materials, plastic containers and plastic buckets, tubes, films, fibers, paper, etc. The spindle speed is 45~100 RPM.
3. According to different materials, different knife sticks can be selected. The correct choice of knife sticks can greatly improve the performance and production efficiency of the equipment. Our factory now provides knife sticks for high-performance knife sticks, hard material knife sticks and film knife sticks.
4. At the same time choosing different knife sticks, our factory also designs different tool holder installation methods according to the characteristics of non-material: welding type tool holder, detachable tool holder, and integrated tool holder.
