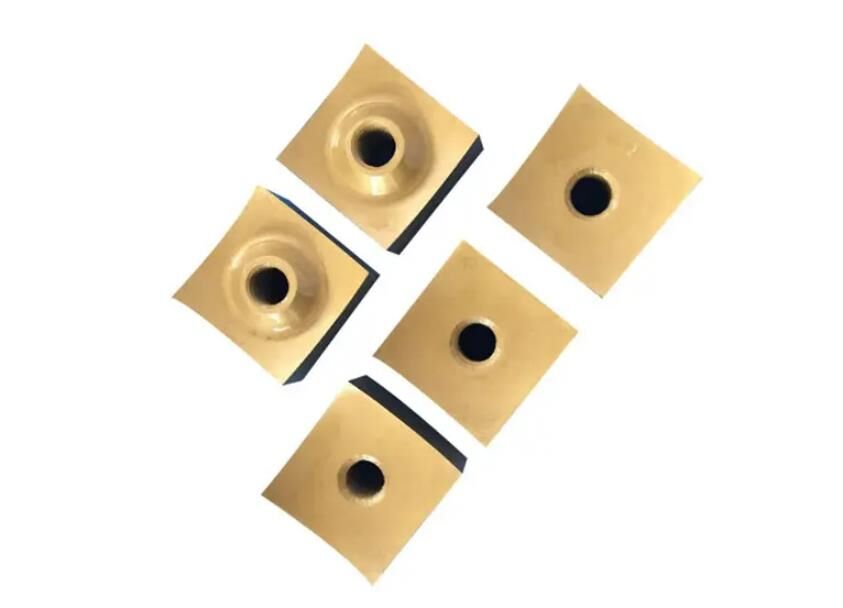

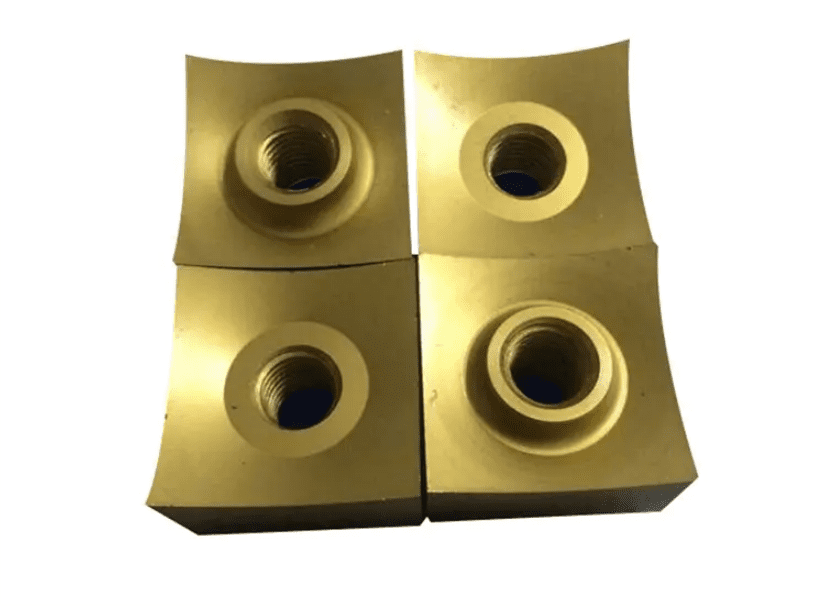

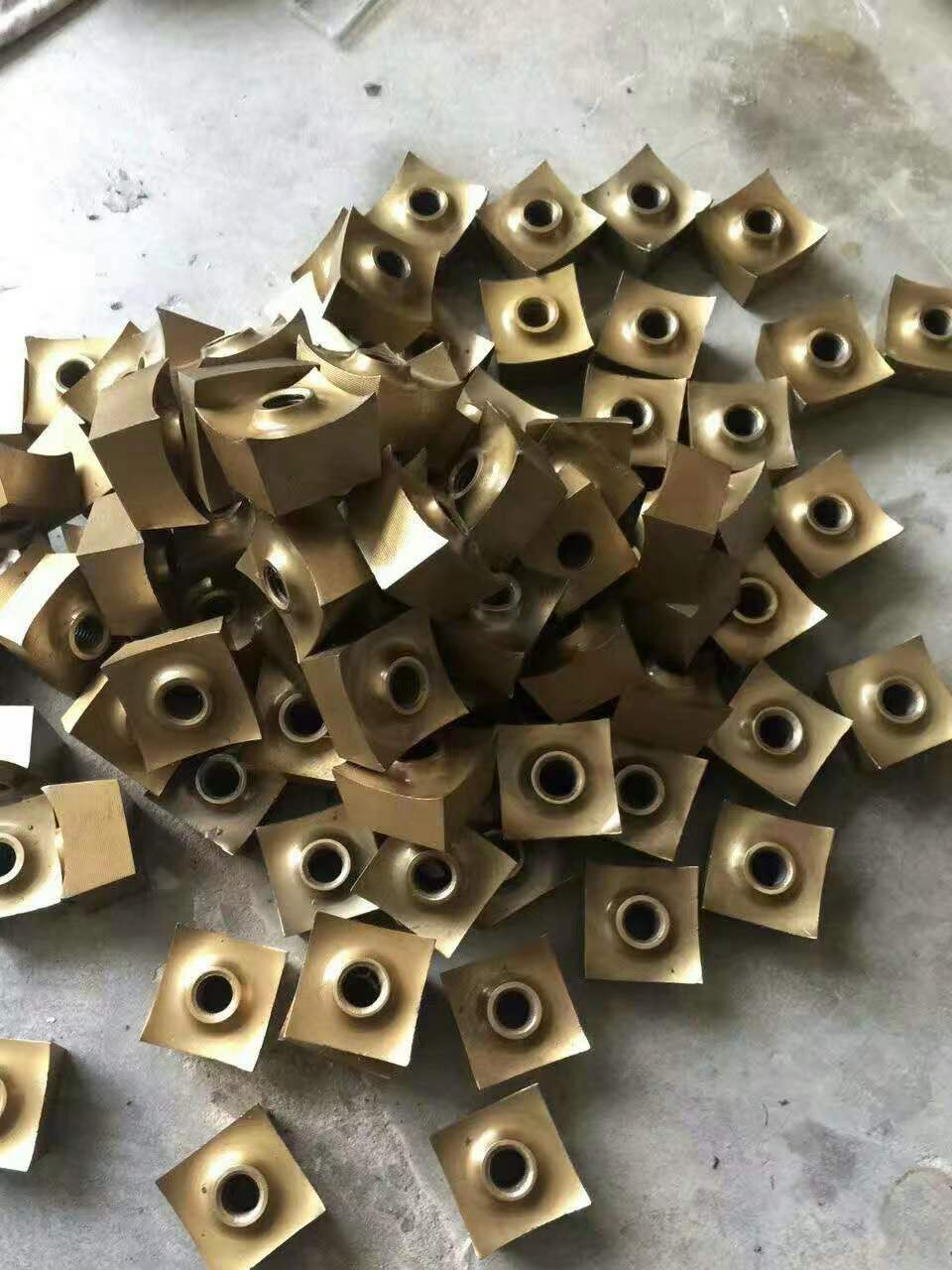

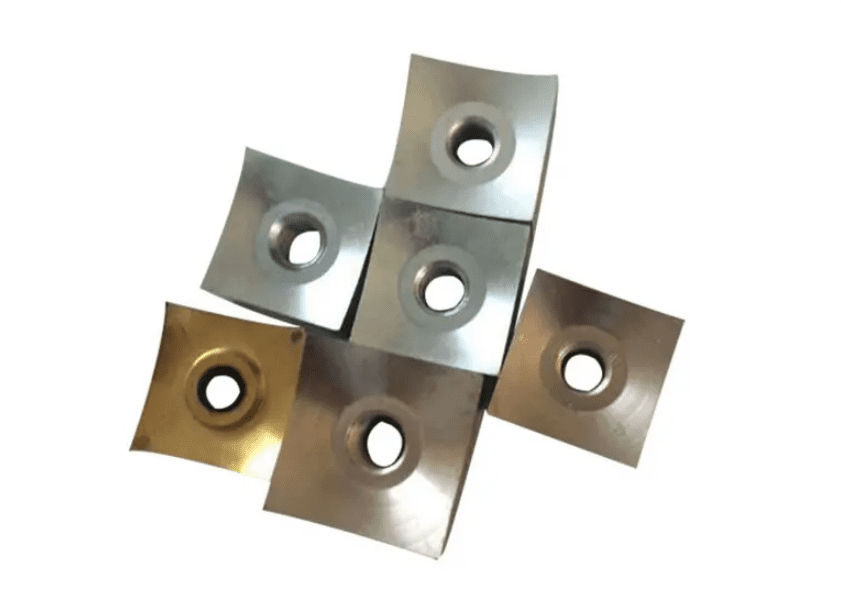

Single Shaft Shredder Blade

The shredder blade is one of the important accessories on the shredder. The quality of the shredder blade directly affects the processing cycle of the machine to waste.

The shredder blade is widely used in metal, circuit board, plastic, waste rubber, wood and The quality of the shredder blade for the crushing of large-volume waste directly affects the processing cycle of the machine for waste.

According to the classification of shredder structure, shredder blades can be divided into single-shaft shredder blades (square knife), multi-shaft shredder blades (including double-shaft shredder blades and four-shaft shredder blades).

According to the name, the single-shaft shredder blade can be known to distinguish the knife used on the multi-shaft shredder, and the appearance is quite different from the knife on the multi-shaft shredder. The knife mold on the single-shaft shredder is in the shape of a cube.

• The Common specifications are: 35*35*22/40*40*25/60*60*30/80*80*35/34*34*20/40*40*25 35*35*23 / 45*45*30 / 46*46*35 / 50*50*25 / 60*60*30 /72*72*50
• The commonly used materials for single-shaft shredder blades are DC53/D2/Cr12MoV/9CrSi.

According to the quality, the single-shaft blade made of Cr12MoV is the most cost-effective.

The single-shaft shredder is mainly composed of a blade spindle, a fixed knife, a load-bearing box, a box bracket, a feeding system, a hydraulic pushing system, a power system, and an electrical control system.

Mainly used for shredding wood, rubber, plastic, paper and other waste materials.

Compared with the multi-shaft shredder, the design of the single-shaft shredder is more complicated, but the replacement of the knife mold is more convenient. The blade of the single-shaft shredder can be easily replaced by simply removing the fixing screws.
